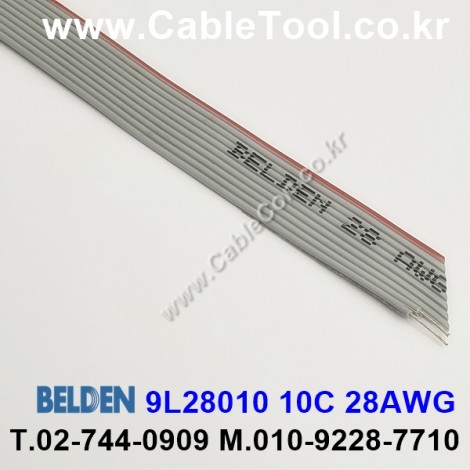

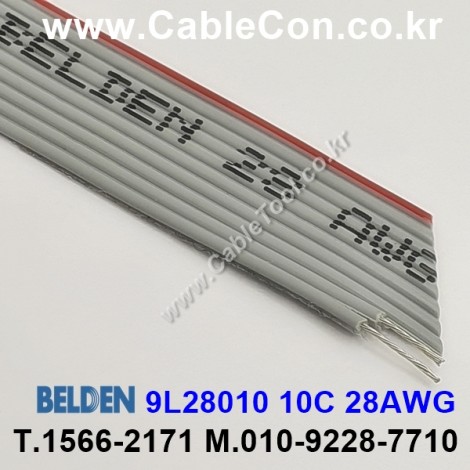

BELDEN 9L28010 008(Gray) 10C 28AWG 벨덴 91M > Multi-Conductor

BELDEN 9L28010, 벨덴 Flat Gray Ribbon Cable .050" Pitch,  UL AWM 2651, VW-1
선재: 10C x 28(7x36)AWG, TC-Tinned copper
절연체 재질: PVC - Polyvinyl Chloride Insulation
색상: Gray

사용환경:
Internal interconnection, internal wiring of electronic equipment, reliable mass-termination
to standard IDC connectors 등

Construction and Dimensions
Cond Spacing Center-Center: .050 +/- .002 in
Cond Spacing Center-Center Outside: .450 +/- .008 in
OuterJacket1, Nominal Width: .500 +/- .008 in
OuterJacket1, Nom Thick Flat Section: 0.035 in

표준 및 준수항목:
UL Voltage Rating: 300 V
Operating Temperature: -40°C to +105°C
UL AWM Style Compliance: 2651
CSA AWM Compliance: I A
Flammability / Fire Resistance: UL VW-1, CSA FT-1
European Directive Compliance: EU Directive 2000/53/EC (ELV):, EU Directive 2003/96/EC (BFR),
|EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), EU Directive 2015/863/EU,
EU Directive 2003/11/EC (BFR),
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-07-01
MII Order #39 (China RoHS): Yes

www.cablecon.co.kr  벨덴 9L28010 사진 www.cable.kr  Belden 카다로그
#BELDEN , #BELDEN9L28010, #벨덴9L28010, #BELDEN 9L28010, #벨덴 9L28010, #9L28010, #벨덴
